senangwebs-tour

a-hakim0MIT1.0.2

VR 360° virtual tour system with visual editor and viewer library

aframe, virtual-tour, 360, panorama

自述文件

SenangWebs Tour (SWT)

A powerful, data-driven 360° virtual tour system built on A-Frame WebVR. Create immersive virtual tours with a visual editor, or integrate the lightweight viewer library into your own projects. SenangWebs Tour Preview

Table of Contents

Features

Core Capabilities

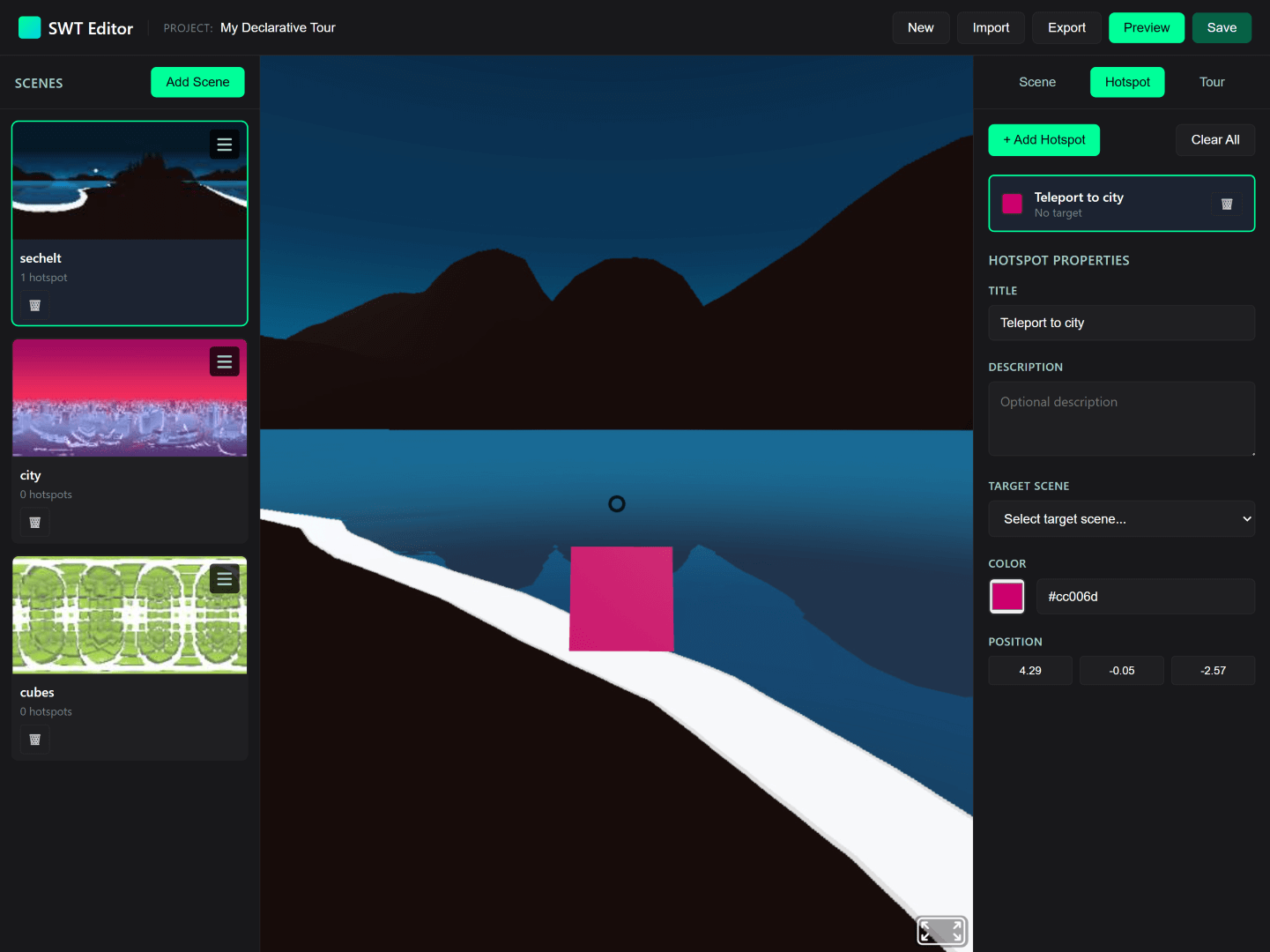

  • Visual Editor - No-code tour builder with click-to-place hotspot interface
  • Viewer Library - Lightweight (12KB minified) JavaScript library for embedding tours
  • Standalone Viewer - Self-contained HTML viewer with drag-and-drop JSON support
  • Mobile & VR Ready - Full touch, mouse, and VR headset support
  • Customizable Hotspots - Custom colors, scales, and tooltip text
  • Multiple Export Formats - JSON configuration or standalone HTML files

Developer-Friendly

  • Two Integration Modes - Declarative (HTML attributes) or Programmatic (JavaScript API)
  • Modular Architecture - Six-controller editor pattern with clear separation of concerns
  • Event System - React to scene loads, hotspot clicks, and navigation events
  • Data-Driven - Pure JSON configuration, no internal state management
  • Built with Rollup - Modern ES6+ modules with sourcemaps for debugging

Quick Start

Using the Visual Editor (No Coding Required)

  1. Start Local Server (required for A-Frame CORS):

    npm install
npm run serve

  2. Open Editor: Navigate to http://localhost:8080/examples/editor.html

  3. Create Your Tour:

    • Click "Add Scene" and upload 360° panorama images (JPG/PNG)
    • Click "Add Hotspot" then click on the preview to place navigation points
    • Configure hotspot properties: color, scale, tooltip text, target scene
    • See changes instantly in the live A-Frame preview

  4. Export Your Tour:

    • JSON Export → Portable config file for library integration
    • Viewer Export → Self-contained HTML file (no dependencies needed)

  5. Test Standalone Viewer: Open http://localhost:8080/examples/viewer.html and drag-and-drop your exported JSON

Integrating with Code (Viewer Library)

Minimal Example (see examples/example-simple.html):

<!DOCTYPE html>
<html>
<head>
  <script src="https://aframe.io/releases/1.7.0/aframe.min.js"></script>
  <script src="https://cdn.jsdelivr.net/gh/a-hakim/senangwebs-tour@latest/dist/swt.min.js"></script>
</head>
<body>
  <a-scene id="tour-scene">
    <a-camera><a-cursor></a-cursor></a-camera>
  </a-scene>

  <script>
    const config = {
      initialScene: "room1",
      scenes: {
        room1: {
          name: "Living Room",
          panorama: "path/to/panorama1.jpg",
          hotspots: [{
            position: { x: 5, y: 0, z: -5 },
            action: { type: "navigateTo", target: "room2" },
            appearance: { color: "#FF6B6B", scale: 1.5 },
            tooltip: { text: "Go to Kitchen" }
          }]
        },
        room2: {
          name: "Kitchen",
          panorama: "path/to/panorama2.jpg",
          hotspots: [{
            position: { x: -5, y: 0, z: 5 },
            action: { type: "navigateTo", target: "room1" },
            appearance: { color: "#4ECDC4", scale: 1.5 },
            tooltip: { text: "Back to Living Room" }
          }]
        }
      }
    };

    const scene = document.querySelector('#tour-scene');
    scene.addEventListener('loaded', () => {
      const tour = new SWT.Tour(scene, config);
      tour.addEventListener('scene-loaded', (e) => {
        console.log('Now viewing:', e.detail.sceneName);
      });
      tour.start();
    });
  </script>
</body>
</html>

Custom Editor Integration

Build your own tour editor using the swt-editor.js bundle. Two initialization modes are supported:

Option 1: Declarative Mode (HTML Attributes)

Zero JavaScript - perfect for quick prototypes:

<!DOCTYPE html>
<html>
<head>
  <script src="https://aframe.io/releases/1.7.0/aframe.min.js"></script>
  <script src="dist/swt.js"></script>
  <script src="dist/swt-editor.js"></script>
  <link rel="stylesheet" href="dist/swt-editor.css">
</head>
<body>
  <!-- Auto-initializes on page load -->
  <div data-swt-editor
       data-swt-auto-init="true"
       data-swt-project-name="My Virtual Tour">
    <div data-swt-scene-list></div>
    <div data-swt-preview-area></div>
    <div data-swt-properties-panel></div>
  </div>
</body>
</html>

Supported HTML Attributes: | Attribute | Description | Default | |-----------|-------------|---------| | data-swt-editor | Marks the editor container (required) | - | | data-swt-auto-init | Auto-initialize on DOMContentLoaded | false | | data-swt-project-name | Initial project name | "Untitled Tour" | | data-swt-auto-save | Enable LocalStorage auto-save | false | | data-swt-auto-save-interval | Auto-save interval (milliseconds) | 30000 | | data-swt-scene-list | Scene list panel container | - | | data-swt-preview-area | A-Frame preview container | - | | data-swt-properties-panel | Hotspot properties panel | - |

Example: examples/editor-declarative.html

Option 2: Programmatic Mode (JavaScript API)

Full control - for custom workflows and advanced integrations:

<!DOCTYPE html>
<html>
<head>
  <script src="https://aframe.io/releases/1.7.0/aframe.min.js"></script>
  <script src="dist/swt.js"></script>
  <script src="dist/swt-editor.js"></script>
  <link rel="stylesheet" href="dist/swt-editor.css">
</head>
<body>
  <div id="editor-container">
    <div id="scenes"></div>
    <div id="preview"></div>
    <div id="properties"></div>
  </div>

  <script>
    // Create editor instance with custom config
    const editor = new TourEditor({
      projectName: 'My Custom Tour',
      autoSave: true,
      autoSaveInterval: 30000
    });

    // Initialize with DOM elements
    editor.init({
      sceneListElement: document.getElementById('scenes'),
      previewElement: document.getElementById('preview'),
      propertiesElement: document.getElementById('properties')
    });

    // Access editor programmatically
    editor.addEventListener('scene-added', (scene) => {
      console.log('New scene:', scene.name);
    });

    // Export tour configuration
    const config = editor.exportJSON();
  </script>
</body>
</html>

Available Classes (all attached to window after loading swt-editor.js):

  • TourEditor - Main coordinator, orchestrates all managers
  • SceneManagerEditor - Scene CRUD operations
  • HotspotEditor - Hotspot placement and editing
  • PreviewController - A-Frame preview rendering
  • UIController - DOM rendering and updates
  • ProjectStorageManager - LocalStorage persistence
  • ExportManager - JSON and HTML export

Examples:

  • examples/editor-declarative.html - Declarative HTML-only mode
  • examples/editor.html - Full-featured programmatic editor

Building from Source

Installation & Build

# Install dependencies
npm install

# Build all bundles (viewer + editor)
npm run build

# Development mode (watch for changes)
npm run dev

# Serve locally (required for A-Frame CORS)
npm run serve
# Access at http://localhost:8080

Build Output

File Size Format Purpose
dist/swt.js 26KB UMD Viewer library (development)
dist/swt.min.js 12KB UMD Viewer library (production)
dist/swt-editor.js 89KB IIFE Editor bundle (development)
dist/swt-editor.min.js 38KB IIFE Editor bundle (production)
dist/swt-editor.css 39KB CSS Editor styles (development)
dist/swt-editor.min.css 25KB CSS Editor styles (production)

All builds include sourcemaps for debugging.

Project Structure

src/
├── index.js                    # Viewer library entry (UMD export)
├── AssetManager.js             # Panorama preloading
├── SceneManager.js             # Sky entity, transitions, fades
├── HotspotManager.js           # Hotspot creation & updates
├── components/
│   └── hotspot-listener.js     # A-Frame hotspot component
└── editor/
    ├── editor-entry.js         # Editor bundle entry (IIFE)
    ├── editor-entry.css        # CSS bundle entry (@import)
    ├── css/
    │   └── main.css           # Editor UI styles
    └── js/
        ├── editor.js           # Main coordinator (TourEditor)
        ├── scene-manager.js    # Scene CRUD (SceneManagerEditor)
        ├── hotspot-editor.js   # Hotspot placement (HotspotEditor)
        ├── preview-controller.js # A-Frame preview (PreviewController)
        ├── ui-controller.js    # DOM rendering (UIController)
        ├── storage-manager.js  # LocalStorage (ProjectStorageManager)
        ├── export-manager.js   # JSON/HTML export (ExportManager)
        ├── utils.js            # Helper functions
        └── ui-init.js          # DOMContentLoaded initialization

examples/
├── example.html               # Full viewer demo
├── example-simple.html        # Minimal viewer demo
├── editor.html               # Full editor demo
├── editor-declarative.html   # Declarative editor demo
└── viewer.html               # Standalone drag-and-drop viewer

API Documentation

Viewer Library API

Constructor

new SWT.Tour(aframeSceneElement, tourConfiguration)

Parameters:

  • aframeSceneElement (HTMLElement) - A-Frame <a-scene> DOM element
  • tourConfiguration (Object) - Tour config (see structure below)

Returns: Tour instance

Configuration Structure

{
  initialScene: "scene-id",       // Required: Starting scene ID
  scenes: {                        // Required: Object (not array!)
    "scene-id": {                  // Key = scene ID
      name: "Scene Name",          // Required: Display name
      panorama: "url-or-dataurl",  // Required: Image URL or base64
      hotspots: [                  // Optional: Array of hotspots
        {
          id: "hotspot-1",         // Optional: Auto-generated if omitted
          position: {              // Required: 3D coordinates
            x: 10,
            y: 1.5,
            z: -3
          },
          action: {                // Required: Hotspot action
            type: "navigateTo",    // Required: Action type
            target: "scene-id-2"   // Required: Target scene ID
          },
          appearance: {            // Optional: Visual customization
            color: "#00ff00",      // Default: "#00ff00"
            scale: 1.5,            // Default: 1.0 (number or "x y z" string)
            icon: "arrow"          // Default: sphere (future: custom icons)
          },
          tooltip: {               // Optional: Hover/focus text
            text: "Click to navigate" // Tooltip content
          }
        }
      ]
    }
  }
}

Important Notes:

  • scenes is an object (keys are scene IDs), not an array
  • Hotspot position is in 3D space (typically on 10-unit sphere surface)
  • Editor stores imageUrl, library expects panorama (export handles conversion)
  • Images can be URLs or Data URLs (base64) for offline tours

Methods

tour.start()

Initialize and start the tour. Loads the initial scene and sets up event listeners.

Returns: void

Example:

const tour = new SWT.Tour(sceneElement, config);
tour.start();
tour.navigateTo(sceneId)

Navigate to a specific scene by ID.

Parameters:

  • sceneId (String) - Target scene ID (must exist in scenes object)

Returns: void

Example:

tour.navigateTo('bedroom'); // Loads scene with id "bedroom"
tour.getCurrentSceneId()

Get the ID of the currently active scene.

Returns: String - Current scene ID

Example:

const currentScene = tour.getCurrentSceneId();
console.log('Viewing:', currentScene); // "living-room"
tour.destroy()

Clean up and remove the tour. Removes all hotspots, event listeners, and resets scene.

Returns: void

Example:

tour.destroy(); // Cleanup before removing from DOM
tour.addEventListener(eventName, callback)

Listen to tour events. Custom event system (not DOM events).

Parameters:

  • eventName (String) - Event name (see Events section)
  • callback (Function) - Handler function receiving event object

Returns: void

Example:

tour.addEventListener('scene-loaded', (event) => {
  console.log('Scene:', event.detail.sceneName);
});

Events

All events include a detail object with event-specific data.

tour-started

Fired when tour.start() is called.

Detail:

{
  config: Object // Full tour configuration
}
scene-loading

Fired before a scene begins loading.

Detail:

{
  sceneId: String // ID of scene being loaded
}
scene-loaded

Fired after a scene is fully loaded and rendered.

Detail:

{
  sceneId: String,   // ID of loaded scene
  sceneName: String  // Display name of scene
}
hotspot-activated

Fired when a hotspot is clicked/activated.

Detail:

{
  hotspotId: String,     // Hotspot ID
  sceneId: String,       // Current scene ID
  action: Object         // Hotspot action object { type, target }
}

Usage Example

const scene = document.querySelector('#vr-scene');
const tour = new SWT.Tour(scene, {
  initialScene: "room1",
  scenes: {
    room1: {
      name: "Living Room",
      panorama: "360-living-room.jpg",
      hotspots: [{
        position: { x: 5, y: 0, z: -5 },
        action: { type: "navigateTo", target: "room2" },
        appearance: { color: "#FF6B6B" },
        tooltip: { text: "Kitchen" }
      }]
    },
    room2: {
      name: "Kitchen",
      panorama: "360-kitchen.jpg",
      hotspots: []
    }
  }
});

// Listen to events
tour.addEventListener('tour-started', (e) => {
  console.log('Tour configuration:', e.detail.config);
});

tour.addEventListener('scene-loading', (e) => {
  console.log('Loading scene:', e.detail.sceneId);
  // Show loading indicator
});

tour.addEventListener('scene-loaded', (e) => {
  console.log('Loaded:', e.detail.sceneName);
  // Hide loading indicator
});

tour.addEventListener('hotspot-activated', (e) => {
  console.log('Hotspot clicked:', e.detail.hotspotId);
  console.log('Navigating to:', e.detail.action.target);
});

// Start the tour
tour.start();

// Programmatic navigation
setTimeout(() => {
  tour.navigateTo('room2');
}, 5000);

// Cleanup
// tour.destroy();

Editor Features

Visual Tour Creation

  • Click-to-Place Hotspots - Raycast-based placement on panorama sphere
  • Real-Time Preview - Instant A-Frame rendering as you edit
  • Scene Management - Add, remove, reorder scenes with thumbnails
  • Camera Control - Auto-point camera to selected hotspot with animation
  • Position Validation - Hotspots clamped to 10-unit sphere radius

Hotspot Configuration

  • 3D Position - Click-to-place or manual X/Y/Z coordinate input
  • Navigation Target - Link to any scene in the tour
  • Visual Customization - Color picker and scale slider
  • Tooltips - Custom hover text for each hotspot

Data Management

  • LocalStorage Persistence - Auto-save projects (configurable interval)
  • Import/Export - Load and save tour JSON configurations
  • Data URLs - Panoramas embedded as base64 (no external files needed)
  • Thumbnail Generation - Auto-generated scene previews (100x50px)

Export Options

  1. JSON Export - Portable configuration file for library integration

    • Converts editor's imageUrl to library's panorama format
    • Compatible with SWT.Tour viewer library
    • Use in custom integrations or standalone viewer

  2. Viewer Export - Self-contained HTML file

    • Embeds minified swt.min.js library
    • Includes full tour JSON configuration
    • No external dependencies - works offline
    • Drag-and-drop ready for distribution

Developer Tools

  • ES6 Module Architecture - Six-controller pattern with clear separation
  • Sourcemaps - Debug original ES6 source in browser DevTools
  • Two Init Modes - Declarative (HTML) or Programmatic (JS API)
  • Event System - React to scene-added, hotspot-clicked events
  • Global Access - All classes attached to window for console debugging

Browser Compatibility

Browser Version Notes
Chrome 90+ Recommended - best performance
Firefox 88+ Full support
Safari 14+ WebGL support required
Edge 90+ Chromium-based
Mobile Safari iOS 14+ Touch and gyroscope support
Chrome Mobile Android 90+ Touch and gyroscope support

Requirements:

  • WebGL 1.0 or higher
  • ES6 module support (for editor)
  • LocalStorage (for editor persistence)

VR Headsets:

  • Oculus Quest 1/2/3
  • Meta Quest Pro
  • HTC Vive
  • Valve Index
  • Any WebXR-compatible headset

Documentation

Contributing

Contributions are welcome! Here's how you can help:

  1. Report Bugs - Open an issue with reproduction steps
  2. Suggest Features - Share your ideas in GitHub Issues
  3. Submit PRs - Fork, create a feature branch, and submit a pull request
  4. Improve Docs - Help make documentation clearer and more comprehensive

Development Workflow

# Fork and clone the repository
git clone https://github.com/your-username/senangwebs-tour.git
cd senangwebs-tour

# Install dependencies
npm install

# Start development server with watch mode
npm run dev

# In another terminal, serve the examples
npm run serve

# Make changes, test in browser at http://localhost:8080
# Build for production
npm run build

# Submit a pull request

Code Guidelines

  • Use ES6+ syntax (modules, classes, arrow functions)
  • Follow existing naming conventions (see copilot-instructions.md)
  • No debug console.log() - only console.error() for critical errors
  • All editor classes must use export default
  • Debounce text inputs (300ms) using debounce() from utils.js
  • Test in Chrome, Firefox, and Safari before submitting

License

MIT License - see LICENSE.md for details.

Acknowledgments

  • A-Frame - WebVR framework powering the 3D rendering
  • Rollup - Module bundler for clean ES6+ builds
